Products>T6-Series>DT-T52-AHD+TVI
DT-T52-AHD+TVI Camera tester

DT-T52-AHD+TVI

Series:T6-Series

This device Support Analog SD, HD-TVI,AHD;Ergonomic design, operate with single hand.Real time operation prompt;12V/2A power output...
describe
parameter
1.General description

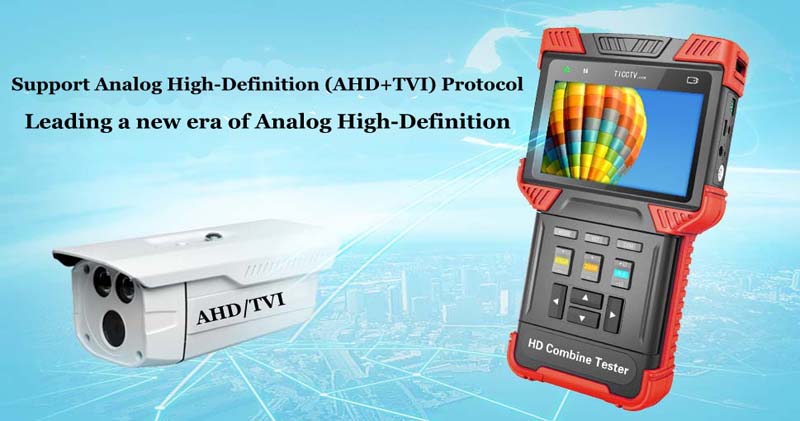

¡ïSupport Analog SD, HD-TVI,AHD

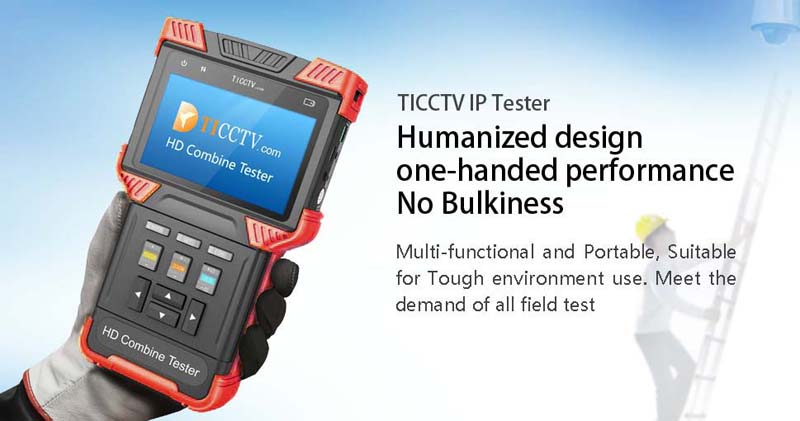

¡ïErgonomic design, operate with single hand.
¡ïReal time operation prompt

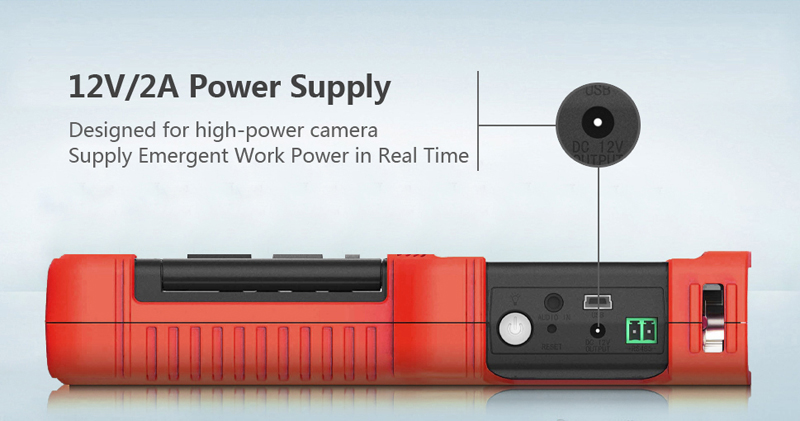

¡ï12V/2A power output¡£

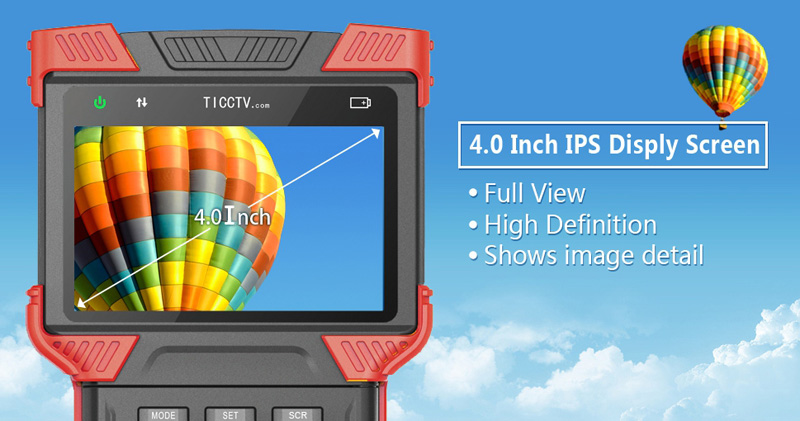

¡ï4.0 inch all viewing angle display£¬800X480 resolution, 16.7M color¡£
¡ïEasy and reliable keypad operation
¡ïChangeable Li-polymer battery, battery working time 10 hours
¡ïWith rubber protection layer

¡ïDual LED torch






Model DT-T52-AHD+TVI
interface
Network interfaceDual 10/100/1000M RJ45£¬support switch mode
Function interfaceDual BNC connector£¨Video input/output£©£¬RS485comm£¬audio input£¬USB, reset button
IPC test
protocol¡Á
Ethernet test¡Á
IP Setting¡Á
IPC Test¡Á
Hikvision camera activate¡Á
Analog SD and HD test
SD standardNTSC, PAL
HD SignalHD-TVI, AHD
Video resolutionD1, 720P, 1080P
Signal level1Vpp
Camera testReal time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.
HD OSDCamera setting£¨OSD£©
HD-TVI Audiosupported
AHD Audiosupported
Coaxial controlHikvision coaxial¡¢PELCO-C coaxial
Video system auto detectYes
PTZ controller
Communication protocolHikvision coaxial¡¢PELCO-C coaxial¡¢Hikvision¡¢Pelco-D/P¡¢Samsung¡¢Panasonic¡¢Lilin¡¢Yaan...more than 30 protocols
Baud rate150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Other test
TDR Test¡Á
POE Test¡Á
Network analysis¡Á
Video generator¡Á
Record playback¡Á
device
Display4.0inch TFT 800*RGB*480(WVGA) resolution£¬16.7M color£¬back light level adjustable
Internal storage8GB flash
LED torchTwo 35lm LED, can turn on individually when device is off.
OperationPower button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
LanguageChinese,English,French,Spanish,Germany,Turkish,Russian
Keypad toneOn/Off
Software upgradeOnline upgrade
power
Power input12V1A
POE injector¡Á
batteryDedicate li-polymer battery, user replaceable, capacity 22.2Wh
Power output12V/2Aoutput
Battery work timeCharge 3~4 hours£¬working time 10 hours
other
Working temperature-10¡æ~+55¡æ
Working humidity30%~90%
Device Dimension190x113x37mm
Weight0.5kg(device with battery) / 1.6kg(gross)
